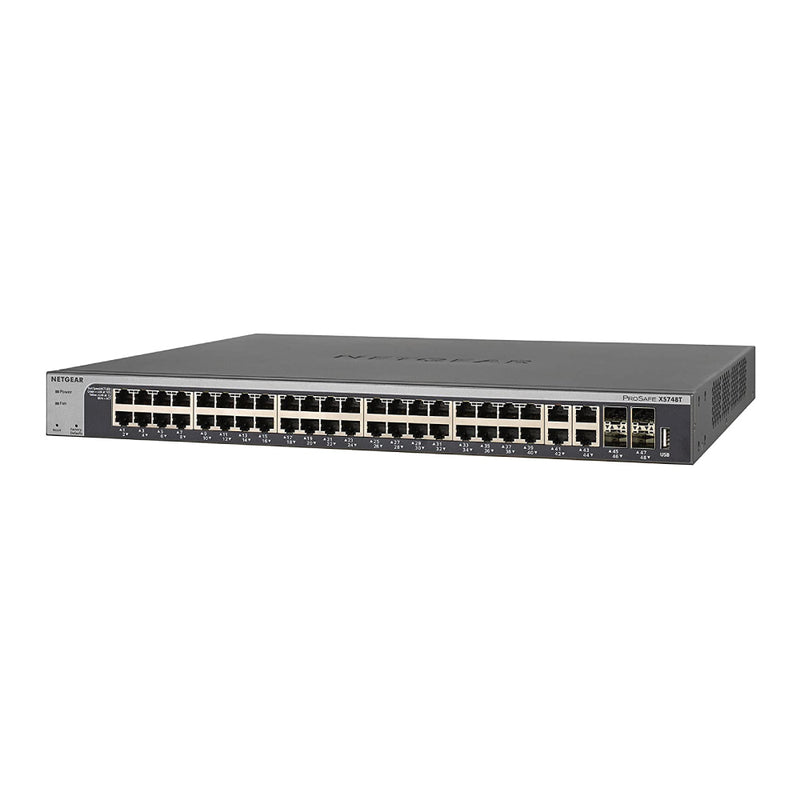

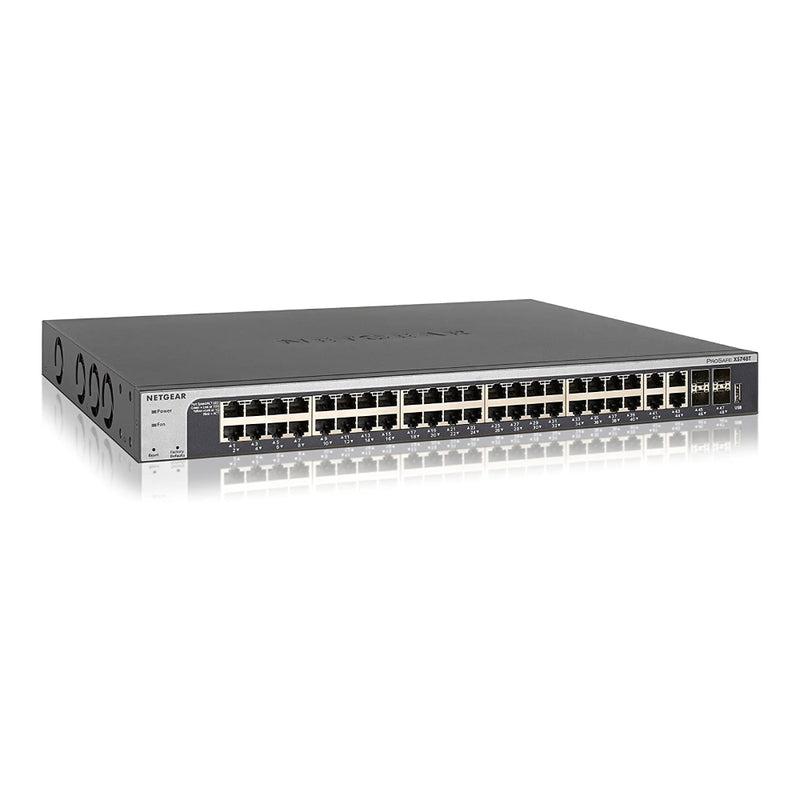

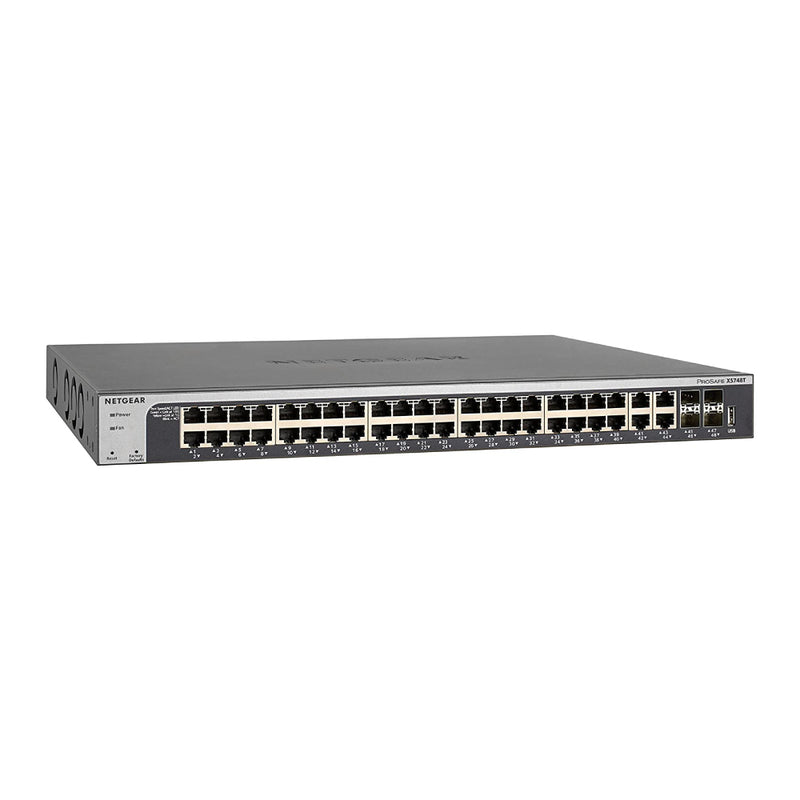

Name: NETGEAR XS748T 48-Port 10G Ethernet Smart Managed Pro Switch- with 4 x 10Gigabit SFP
Brand: Kaira Global (Singapore)
SKU: XS748T-100AJS
Price: 10009.0 SGD
Availability: OutOfStock

NETGEAR XS748T 48-Port 10G Ethernet Smart Managed Pro Switch - with 4 x 10Gigabit SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection

Suffix

-100AJS

-100NES

Price

Tax included. Shipping calculated at checkout.

Quantity

Rated for use in Singapore
Local Service Center
Delivery options available
In stock
Inventory on the way

[{"id":42837212233905,"title":"-100AJS","option1":"-100AJS","option2":null,"option3":null,"sku":"XS748T-100AJS","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"NETGEAR XS748T 48-Port 10G Ethernet Smart Managed Pro Switch- with 4 x 10Gigabit SFP - -100AJS","public_title":"-100AJS","options":["-100AJS"],"price":1000900,"weight":6250,"compare_at_price":0,"inventory_management":"shopify","barcode":"606449112399","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42837212266673,"title":"-100NES","option1":"-100NES","option2":null,"option3":null,"sku":"XS748T-100NES","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"NETGEAR XS748T 48-Port 10G Ethernet Smart Managed Pro Switch- with 4 x 10Gigabit SFP - -100NES","public_title":"-100NES","options":["-100NES"],"price":1000900,"weight":6250,"compare_at_price":0,"inventory_management":"shopify","barcode":"606449112382","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Take your network beyond reliability. With 10G, get high bandwidth perfect for sharing, collaborating, editing and streaming. 4 x 10Gigabit SFP+ uplink flexibility.

More from All Products

CADYCE CA-U34H USB 3.0 4-Port Hub

Enquire with us

Sold Out

HP P500 Portable SSD

Enquire with us

GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Yellow

GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Yellow

Enquire with us

GOOBAY CAT 7 S/FTP PIMF RJ45 LSZH - Blue

GOOBAY LAN CAT 7 S/FTP PIMF RJ45 LSZH Patch Cable - Blue

Enquire with us

Sold Out

ARLO Ultra 2 VMS5340 4K Ultra HD Wireless HDR Security Camera System

Enquire with us

GOOBAY LAN CAT 6 SOLID U/UTP WEISS CCA CPR

Enquire with us

Back to All Products

Specifications Product Datasheet Installation Guide User Manual

Features

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

IPv4 and IPv6-based QoS (selected models)

DSCP Support Rate Limiting (ingress, or egress)Link Aggregation and LACP

Switch Management

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)Memory & FLASH log Syslog (server) System password protection

Specifications

Product Number

XS748T

10-Gigabit copper ports

44 10GBASE-T copper

SFP ports

4 SFP+ 1000/10GBASE-X fiber ports (shared)

Packet buffer size

3 MB

MAC address database size

16K

VLAN (# supported)

512

Number of LAGs & number of members

24 LAGS with max 8 members in each LAG (LACP)

Number of priority queues

Access Control Lists (ACLs)

164 shared for MAC, IP and IPv6 ACLs

IPv4 Static routes

IPV6 Static routes

Physical Specification

Dimensions: 440 x 347 x 43 mm (17.3 x 13.7 x 1.7 in)

Weight : 440 x 347 x 43 mm (17.3 x 13.7 x 1.7 in)

Max power consumption (Watts)

262.8 W

VLAN routing

Yes

Dynamic VLAN assignment

Yes

MLD Snooping

Yes

Static route

Yes (32)

Host ARP table

512 ARP

EEE

Yes

DoS Prevention

Yes

Internal/External

External DC 54V 1.25A

Max consumption (Watts)

15.1W

FAN

Acoustic Noise Level @25C (dBA)

47.8 dBA

Operating Temperature

0° to 50°C (32° to 122°F)

MTBF (@ 25° C)

483,808 hours

Electromagnetic compliance (A or B)

Class A

NETGEAR XS748T 48-Port 10G Ethernet Smart Managed Pro Switch- with 4 x 10Gigabit SFP
