Essential all-in-one internet security
You wouldn’t leave your door unlocked at night. Treat your WiFi network with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks. 1-year subscription included.
CONNECTED KIDS ARE PROTECTED TOO
Easily manage kids’ time and accessibility online across all connected devices. Promote healthy Internet habits, foster responsibility and build trust with your kids.
Technical Specifications
Physical Specification
Dimensions : Folded size: 11.86 x 8.16 x 3.23 in (301.33 x 207.9 x 82.03 mm)
Unfolded size: 13.64 x 8.16 x 6.47 in (346.5 x 207.9 x 164.3 mm)
Weight : 2.23 lb (1.01kg)
WiFi Technology
WiFi 6E (IEEE® 802.11ax) Tri-Band WiFi (AXE7800) 8-Stream
2.4GHz AX: 2x2 (Tx/Rx) 1024/256-QAM 20/40MHz, up to 600Mbps
5GHz AX: 4x4 (Tx/Rx) 1024/256-QAM 20/40/80/160MHz, up to 4.8Gbps
New 6GHz AX: 2x2 (Tx/Rx) 1024/256-QAM 20/40/80/160MHz, up to 2.4Gbps
Backwards compatible with IEEE 802.11 a/b/g/n/ac WiFi
Supports new WiFi 6E devices on 6GHz WiFi band
WiFi Speed
AXE7800 (.6+4.8+2.4Gbps)
WiFi Band
Tri-Band 6GHz + 5GHz +2.4GHz

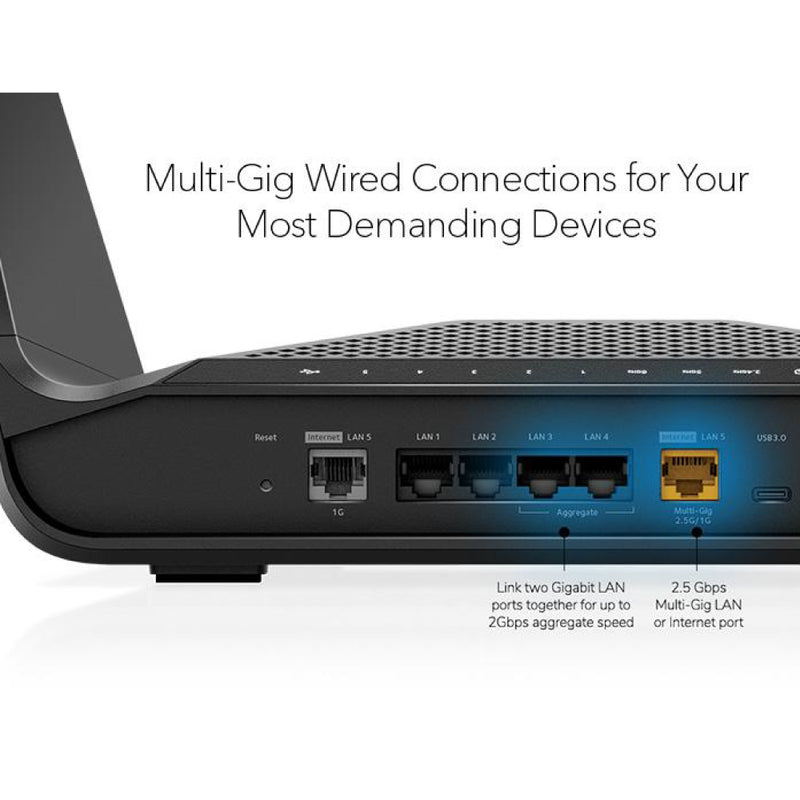

Ethernet Ports
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1) 2.5G/1Gbps Multi-Gig port
4x GbE (2x port aggregation LAN)
1x 1GbE Internet/LAN (configurable)
1x 2.5G/1Gbps Multi-Gig port (configurable)
Multi-Gig: Ability to aggregate two Gigabit LAN ports (configurable) concurrently
USB Ports
One (1) USB 3.0 port. Type-C for network storage
Processor
Quad-core 1.7GHz processor
Security
NETGEAR Armor™—Advanced cyber threat protection for your home network and your connected devices. One-year subscription included††
NETGEAR Smart Parental Controls™—Easily manage your kids‘ time online across their connected devices∞
Guest network access—Separate & secure
Supports WPA3, the latest and cutting-edge WiFi security protocol
VPN Support—Secure access to your home
Automatic firmware update delivers latest security patches to the router

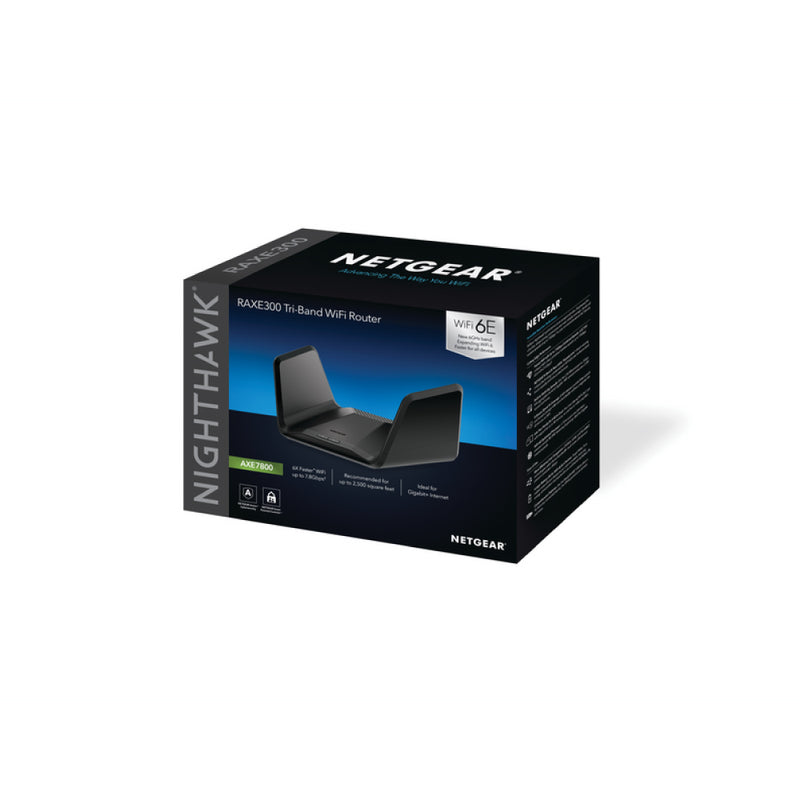

What's in the box
Nighthawk® AXE7800 Tri-Band WiFi 6E Router (RAXE300)
Ethernet cable
Quick start guide
Power adapter
Warranty
NETGEAR 2-year limited hardware warranty (valid only if purchased from a NETGEAR authorized reseller)
