Features
Compliant with Major L3 Protocols
Fiber Ports
48 SFP+ Fiber ports have 1G/10G speeds & 2x 10Gb Copper
Stackable
Interface with other M4300 Series switches and manage as one unit Non-Blocking Fabric
PoE Flexibility
Choose from budgets of up to 1,440W; 2 x APS1200W PSUs in shared EPS mode @ 110V/220V AC input.
Industry-Standard Management
Stay on top of operations with: CLI, local GUI, SNMP, sFlow, RSPAN, single pane of glass NMS300.
Secure your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection.
Dependable Operations
Enjoy high availability across virtual servers through load balancing and nonstop forwarding failover.
Specifications
Hardware Specifications

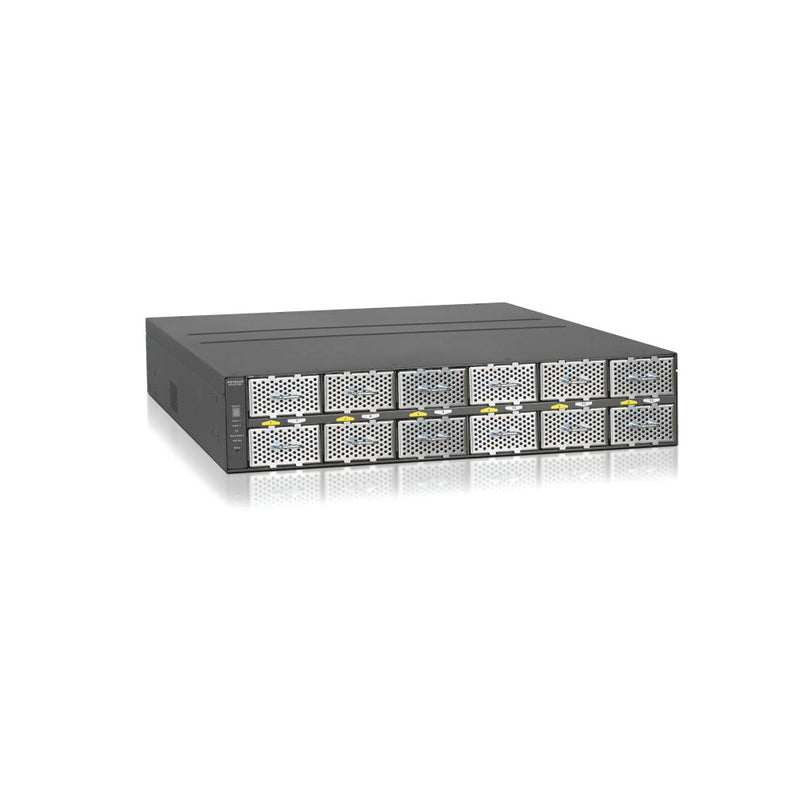

Model Number: XSM4396K0 (Empty switch without PSU, 12 slots for APM port cards, 2 slots for PSUs); XSM4396K1 (Starter Kit with the switch, 48 x SFP+ (6 x APM408F) and 1 PSU APS600W)
Up to 96 ports 100M, 1G, 2.5G, 5G, 10G
Up to 96 ports 1G, 10G
Up to 24 ports 40G

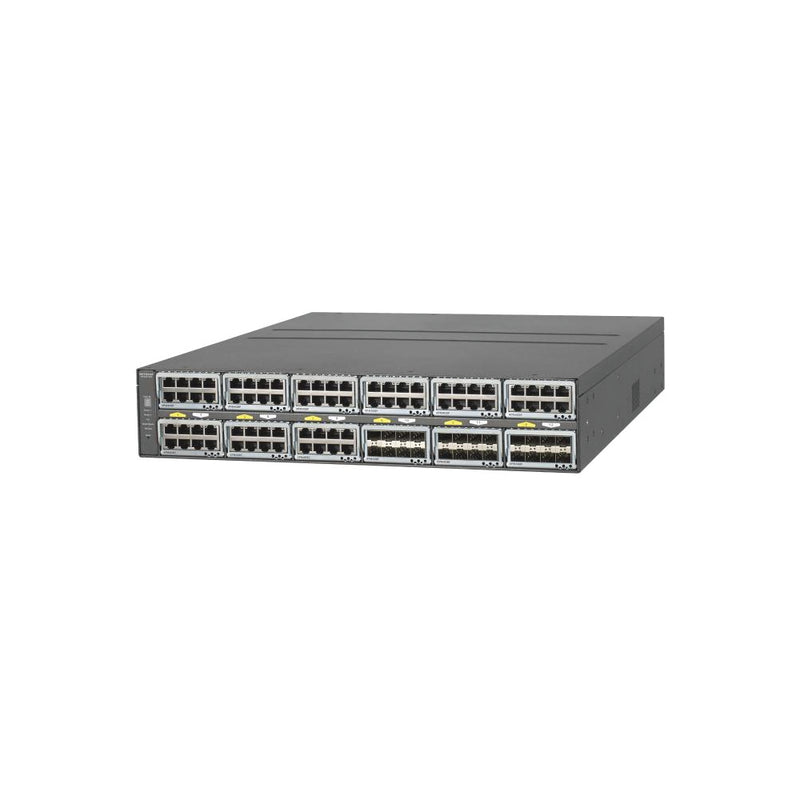

Expansion Cards
APM408C (8 ports RJ45); APM408P (8 ports PoE+ RJ45); APM408F (8 ports SFP+); APM402XL (2 ports QSFP+)
1.920 Tbps Switching Fabric

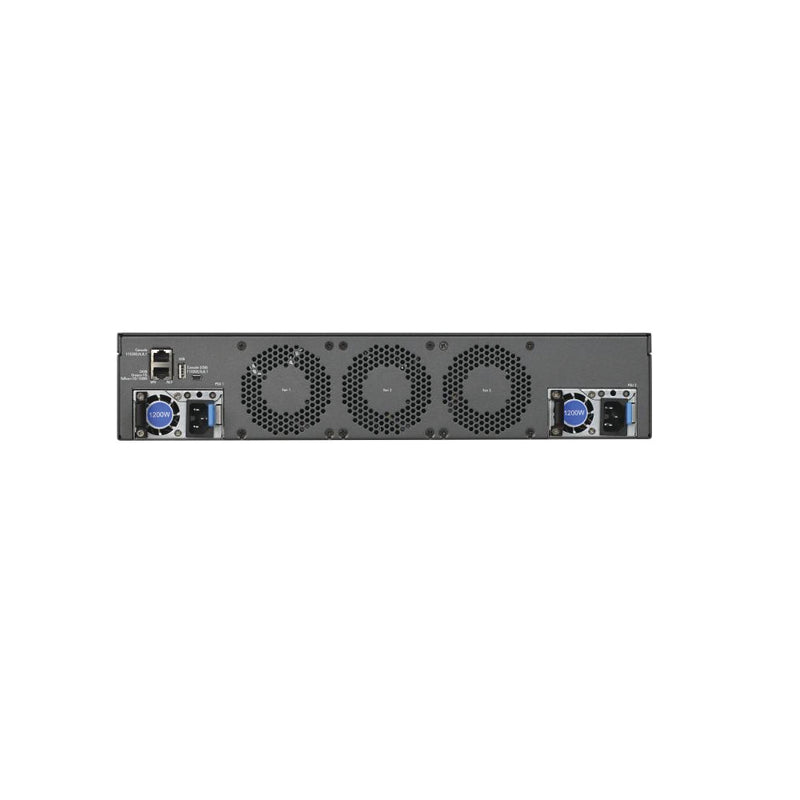

PSU Modular 2 bays for APS600W or APS1200W
Fixed Fans Front-to-back 35.8dB (no PoE), 66.8dB (max PoE)
Management Options
Ethernet: Out-of-band 1G port (Back)
Console: RJ45 RS232 (Back)
Console: Mini-USB (Back)
Storage: USB (Front)
Single-pane-of-glass NMS300 management platform with mass-configuration support
Dual firmware image and configuration file for updates with minimum service interruption
Warranty
Limited Lifetime Warranty
