VOLKTEK SEN-9648P-24V-SS 8 Ports GbE Substation Certified Managed PoE+ Switch with 4 SFP Ports

SKU: SEN-9648P-24V-SS
VOLKTEK SEN-9648P-24V-SS 8 Ports GbE Substation Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648P-24V-SS 8 Ports GbE Substation Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648P-24V-SS 8 Ports GbE Substation Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648P-24V-SS 8 Ports GbE Substation Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648P-24V-SS 8 Ports GbE Substation Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648P-24V-SS 8 Ports GbE Substation Certified Managed PoE+ Switch with 4 SFP Ports

VOLKTEK SEN-9648P-24V-SS 8 Ports GbE Substation Certified Managed PoE+ Switch with 4 SFP Ports

SKU: SEN-9648P-24V-SS
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
SEN-9648-24V-SS is an 8-port 10/100/1000 PoE+ downlink and 4-port GbE SFP downlink managed industrial grade switch designed to operate in substation applications with high interference. This PoE+ switch features up to 8-port PSE (power sourcing equipment) ports with plug and play feature to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches and the control center.

The RJ45 type console port allows outbound network troubleshooting when networks go wrong. The USB port, designed to save configuration files, save system log files, and upgrade firmware, reduces network downtime and operational costs. The switch offers various in-built traffic optimization and network performance features to prioritize industrial applications, prevent the loss of data during communication, and assure a stable transmission. The switch includes a topology map compatible with third-party devices to monitor the network. This device complies with cybersecurity standards to safeguard the network from vulnerabilities and protect your assets.

This switch is built with industrial grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without extra power outlet installation needed. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits demanding environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from Surveillance Ethernet
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
Enquire with us
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
Enquire with us
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
Enquire with us
Back to Surveillance Ethernet
Datasheet
Product Highlights
  • 8 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port
  • 4 x GbE SFP uplink ports for long-distance connectivity to control center and cascading
  • 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files
  • It prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Wide input power range (24V to 57V) suits different environments
  • EEE 1613 and IEC 61850-3 certifications, communication standards for safe and reliable substation operations
  • Operating temperatures-40℃~75℃ (-40°F~167°F) and IP30 Aluminum housing USB -40°C-75°C
Features

Redundant Power System

Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.

Innovative Power Boost Technology

24V to 57V DC power boosting with DC-to-DC converter for high-power requiring PoE/PoE+ devices.

High-Power Budget for PoE Devices

Up to 30W per port (IEEE 802.3af/at) powering to PoE+ devices.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3 Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.3ad Link Aggregation
IEEE 802.3af Power over Ethernet
IEEE 802.3atPower over Ethernet Plus
IEEE 802.3azEnergy Efficient Ethernet (EEE)
IEEE 802.1ABLLDP
IEEE 802.1adQinQ
IEEE 802.1DSTP
IEEE 802.1wRSTP
IEEE 802.1sMSTP
IEEE 802.1pClass of Service
IEEE 802.1QVLAN Tagging
IEEE 802.1XPort Authentication
IEEE 1588v2PTP

Interface

Ports8 x 10/100/1000BASE-T (PoE RJ45)
4 x GbE SFP Slots
1 x RJ45 Console Port
1 x USB Port

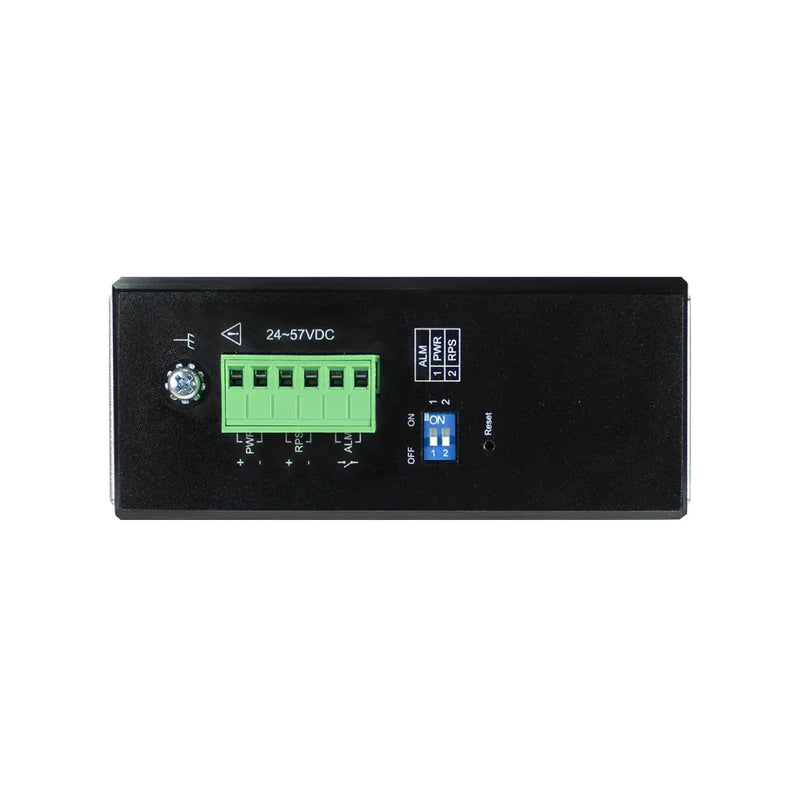

DIP Switch Primary/Redundant Power Voltage Drop Alarm setting
LED Panel PWR, RPS, ALM, POST, SFP, PoE, 1000, LNK/ACT

Power

Input VoltagePrimary inputs: 24~57V DC
Redundant inputs: 24~57V DC
Connector Teminal Block
Power ConsumptionSystem: 18W
PoE Power Budget: 240W @ 48V or 124W @ 24V
Alarm Relay One relay output, 1A @ 24V DC

Mechanical and Environment

HousingAluminum Case (IP30 protection)

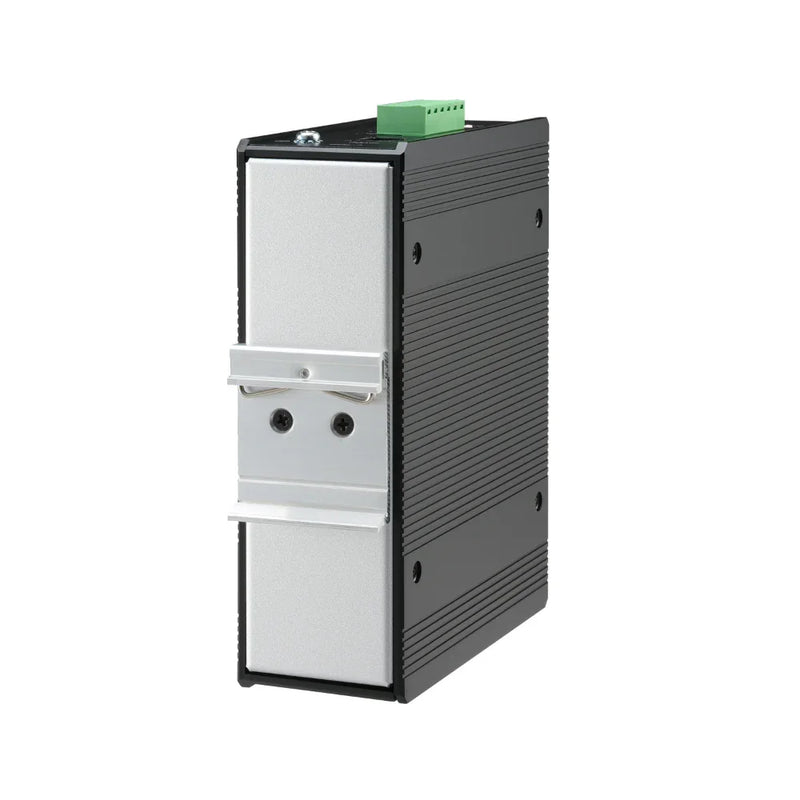

MountingDIN-Rail
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight955 g (2.1 lb)
Dimension (WxHxD)50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)

Ordering Information

ModelDescription
SEN-9648P-24V-SS Managed 8 x 10/100/1000 PoE+ & 4 x GbE SFP Switch, Substation Approval
