VOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports

SKU: SEN-9425P-24V-RW
VOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP PortsVOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP PortsVOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports
VOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports

VOLKTEK SEN-9425P-24V-RW 4 Ports GbE Railway Certified Unmanaged PoE+ Switch with 1 RJ45 and 2 SFP Ports

SKU: SEN-9425P-24V-RW
/
Tax included. Shipping calculated at checkout.
  • Rated for use in Singapore
  • Local Service Center
  • Delivery options available
  • In stock
  • Inventory on the way
SEN-9425P-24V-RW is a 4-port 10/100/1000 PoE+ downlink, 1-port 10/100/1000 RJ45 downlink, and 2-port GbE SFP uplink unmanaged industrial-grade switch designed to meet the thermal requirements and environmental conditions of surveillance and WAP Railway applications. This PoE+ switch features up to 4-port PSE (power sourcing equipment) ports with plug and play features to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center. To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE.

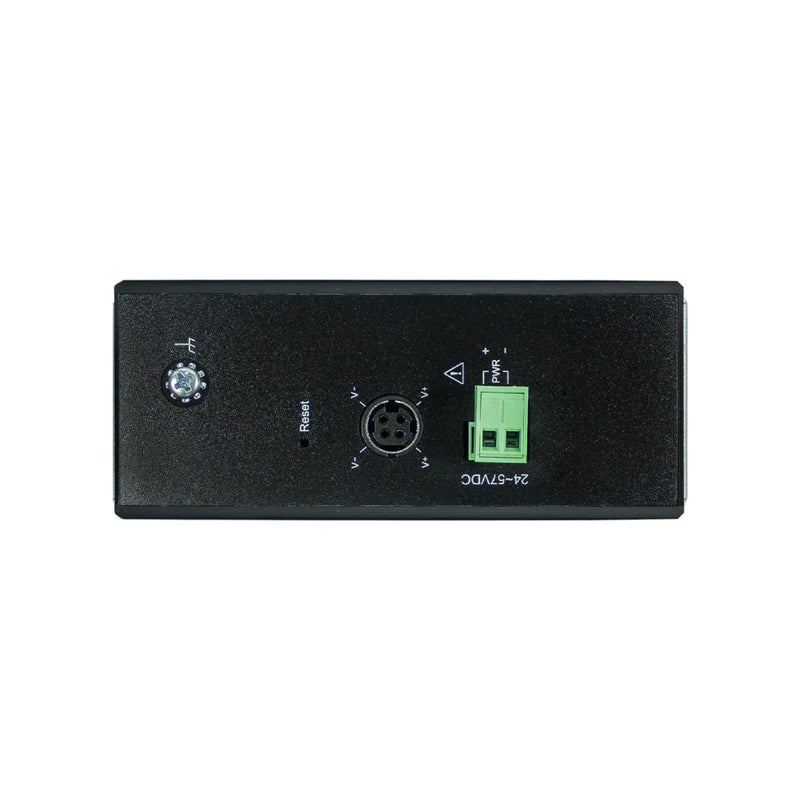

This switch is built with industrial-grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without extra power outlet installation needed. The device has two power input methods, a 2-pin Terminal Block and a 4 pin mini-DIN that attaches firmly to the device avoiding it from disconnecting during strong vibrations. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits heavy industrial environments.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
More from Surveillance Ethernet
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-24GP2GS-D-I 24 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
Enquire with us
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
VOLKTEK Hawkeye 9005-16GP2GS-D-I 16 Ports Gbe Managed PoE+ Industrial Switch with 2 SFP Ports and DC Power Input
Enquire with us
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-H 24 Ports GbE Managed PoE+ industrial Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-24GP2GS-A-C 24 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
VOLKTEK Hawkeye 9005-16GP2GS-A-C 16 Ports GbE Managed PoE+ Switch with 2 SFP Ports and Intl. AC Power
Enquire with us
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
VOLKTEK SEN-9648PM-24V 8 Ports GbE DNV GL Certified Managed PoE+ Switch with 4 SFP Ports
Enquire with us
Back to Surveillance Ethernet
Datasheet
Product Highlights
  • 4 x 10/100/1000 PoE+ PSE downlink ports - 30 Watts max. output power/port
  • 1 x 10/100/1000 RJ45 and 2 x GbE SFP uplink ports for long-distance connectivity to control center and cascading
  • Optimizes network performance with Flow Control and QoS for enough bandwidth for video and other data
  • Industrial QoS prioritizes EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Wide input power range (24 to 57V DC) suits different environmentsv
  • Railway Approval EN 50155, EN 50121-4, EN 61373 Certifications, communication standards for safe and reliable railway operations
  • Operating temperature -40℃~75℃ (-40°F~167°F) and IP30 Aluminum housing
Features

High-Power Budget for PoE Devices

Compliant with PoE+ (IEEE 802.3at), the switch supplies 30W per each PoE port, for a 120W total power budget and allows simple “plug and play” PoE for various types of high power-consuming PoE devices.

Firm Power Connection and DIN-Rail mountable (AC to DC)

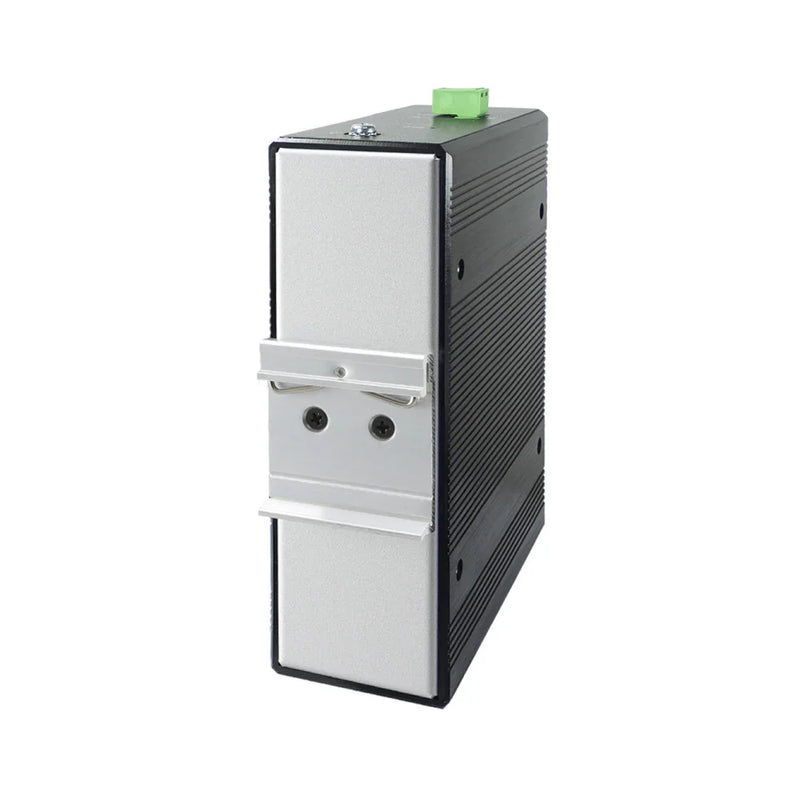

DIN-Rail mountable power adaptor; 4 pin mini-DIN that attaches firmly to the device avoiding it from disconnecting during strong vibrations

Innovative Power Boost Technology

24 to 57V DC power boosting with DC-to-DC converter for high-power requiring PoE/PoE+ devices.

Resistant to Extreme Environments

The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to extreme temperatures (-40°C~75°C), and resistance to interference makes this device infallible in demanding industrial environments around multiple types of machinery.

Specifications

Standards

IEEE 802.310BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3 Nway Auto-negotiation
IEEE 802.3xFlow Control
IEEE 802.3afPower over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3azEnergy Efficient Ethernet (EEE)
IEEE 802.1pClass of Service

Interface

Ports4 x 10/100/1000BASE-T (PoE RJ45)
1 x 10/100/1000BASE-T (RJ45)
2 x GbE SFP Slots
LED PanelPWR, SFP, PoE, 1000, LNK/ACT

Power

Input Voltage24~57V DC
Connector Teminal Block
Power ConsumptionSystem:
14W PoE
Power Budget: 120W
Power Input Polarity Protection Present

Mechanical and Environment

HousingAluminum Case (IP30 protection)
MountingDIN-Rail, Wall Mount/Rack-mount
Operating Temperature-40°C~75°C (-40°F~167°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Operating Humidity 5 to 95% RH (non-condensing)
Storage Humidity5 to 95% RH (non-condensing)
Weight869 g (1.92 lb)
Dimension (WxHxD)50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)

Ordering Information

ModelDescription
SEN-9425P-24V-RW Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 2 x GbE SFP Switch, Railway Approval
